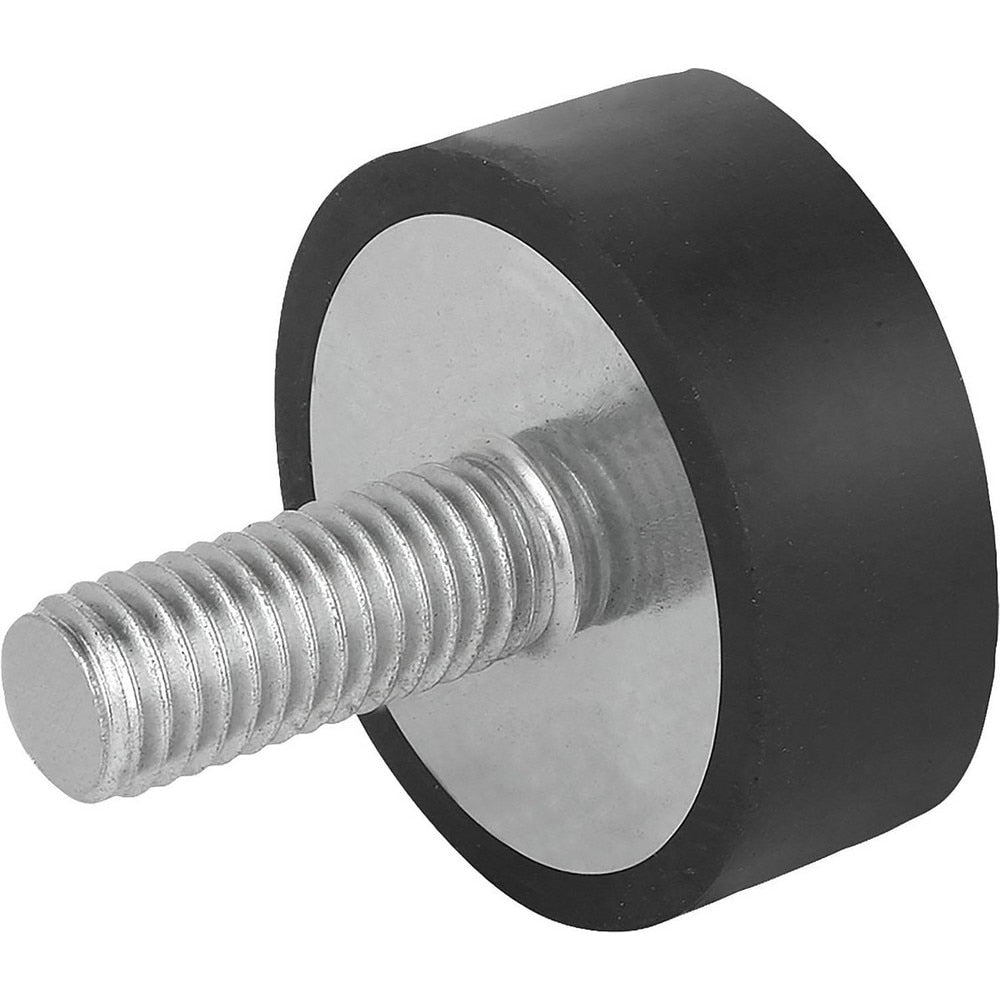

Vibration Isolators; Isolator Type: Standard Deflection; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 49.46; Top Diameter: 20.00; Bottom Diameter: 20; Thread Size: M6; Overall Width: 1
Item #: 60900347
Brand: KIPP
Model #: K0571.020015551
Product Specifications
| Isolator Type | Standard Deflection |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 49.46 |
| Top Diameter | 20.00 |
| Bottom Diameter | 20 |
| Thread Size | M6 |
| Overall Width | 1 |
| Overall Diameter | 0.787 in |
| Thread Length (Decimal Inch) | 0.7087 |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.00 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 1.299 in |
| UNSPSC Code | 23153100 |
| Isolator Type | Standard Deflection |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 49.46 |
| Top Diameter | 20.00 |
| Bottom Diameter | 20 |
| Thread Size | M6 |
| Overall Width | 1 |
| Overall Diameter | 0.787 in |
| Thread Length (Decimal Inch) | 0.7087 |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.00 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 1.299 in |
| UNSPSC Code | 23153100 |
| MSC Part # | 60900347 |
| Mfr Part # | K0571.020015551 |
| Country of Origin Country of Origin is subject to change | Turkey |
