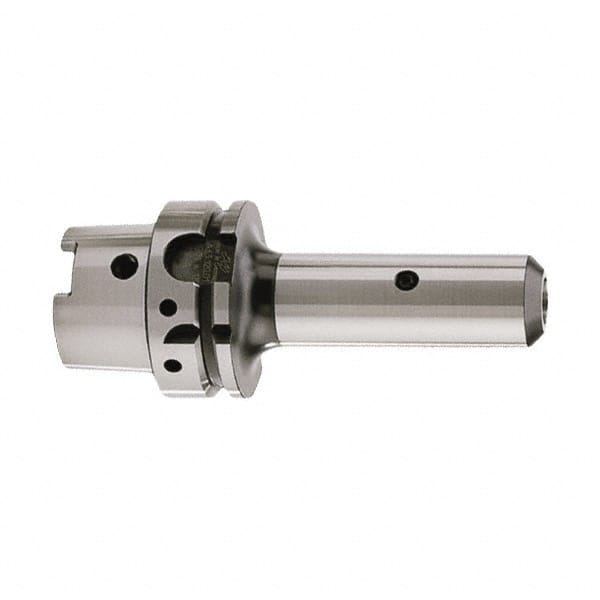

HAIMER - 0.39" to 0.57" Capacity, 4.72" Projection, HSK100A Hollow Taper, HG02 Collet Chuck - 0.0002" TIR
Item #: 52181955
Brand: HAIMER
Model #: A10.120.02
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | HG |
| Collet Series | HG02 |
| Shank Type | Hollow Taper |
| Taper Size | HSK100A |
| Projection (Decimal Inch) | 4.7200 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.3900 |
| Maximum Collet Capacity (Decimal Inch) | 0.5700 |
| Type | HG Collet |
| Nose Diameter (Decimal Inch) | 1.3800 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0002 |
