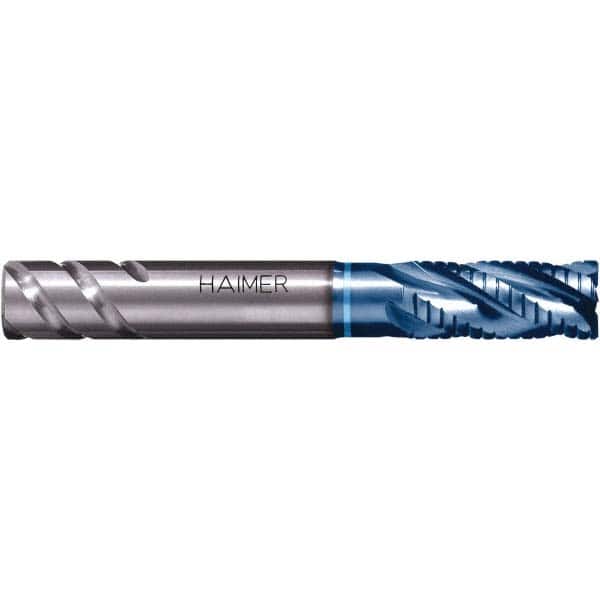

Corner Chamfer End Mill: 0.6299″ Dia, 1.2598″ LOC, 4 Flute, 0.0197″ Chamfer Width, Solid Carbide 93 mm OAL, 16 mm Shank Dia, 35 ° Helix, AlTiN Coated, Centercutting
Item #: 52175551
Brand: HAIMER
Model #: F1304NNL1600CAA
Product Specifications
| Mill Diameter (mm) | 0.6299 in; 16.00; 16.0 mm |
| Mill Diameter (Decimal Inch) | 0.6299; 0.6299 in; 16.0 mm |
| Number of Flutes | 4 |
| Length of Cut (mm) | 32.00 |
| Length of Cut (Decimal Inch) | 1.2598 |
| Shank Diameter (Inch) | 16.0 mm |
| Shank Diameter (mm) | 16.00; 16.0 mm |
| Shank Diameter (Decimal Inch) | 16.0 mm |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Overall Length (mm) | 93.0 mm; 3.6614 in; 93.00 |
| Overall Length (Inch) | 93.0 mm; 3.6614 in |
| Centercutting | Yes; Center Cutting |
| Helix Angle | 35.00 |
| Extended Reach | Yes |
| Chamfer Width (Decimal Inch) | 0.0197 in; 0.0197; 0.5000 mm |
| Chamfer Width (mm) | 0.50 |
| Chamfer Angle | 45 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| TIR Maximum (Decimal Inch) | 0.0002 |
| Reach Length (Inch) | 42.0 mm |
| Reach Length (mm) | 42.00; 42.0 mm |
| Overall Length (Decimal Inch) | 3.6614; 93.0 mm; 3.6614 in |
