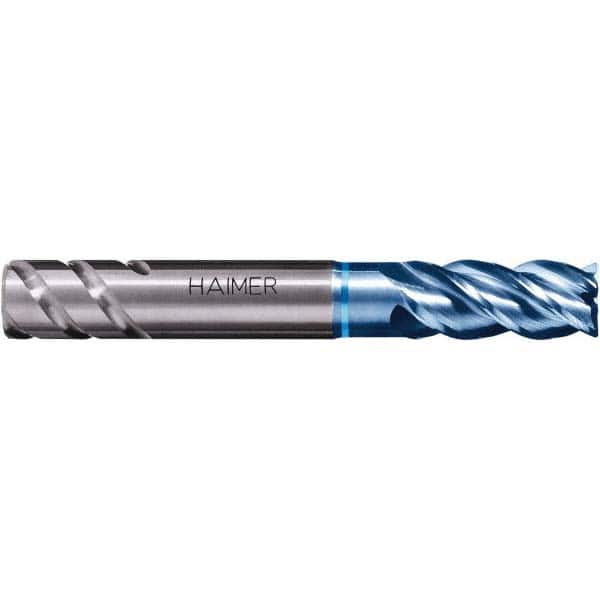

Corner Chamfer End Mill: 0.375″ Dia, 0.75″ LOC, 4 Flute, Solid Carbide 2-1/2″ OAL, 3/8″ Shank Dia, AlTiN Coated, Centercutting
Item #: 52175387
Brand: HAIMER
Model #: F1004NNL3/8ZCAA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750; 0.375 in |
| Mill Diameter (Inch) | 3/8; 0.375 in |
| End Type | Corner Chamfer |
| Chamfer Length (Decimal Inch) | 0.0120 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (Inch) | 3/8; 3/8 in |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes; Center Cutting |
| Extended Reach | Yes |
| Reach Length (Decimal Inch) | 1.0000; 1 in; 1.0 in |
| Reach Length (Inch) | 1; 1 in; 1.0 in |
| Neck Diameter (Decimal Inch) | 0.355 in; 0.3550 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | 3/8 in |
| Overall Length Tolerance (Decimal Inch) | +0.002 to -0.002 in; +0.002/-0.002 |
| Overall Length Tolerance (mm) | +0.002 to -0.002 in |
