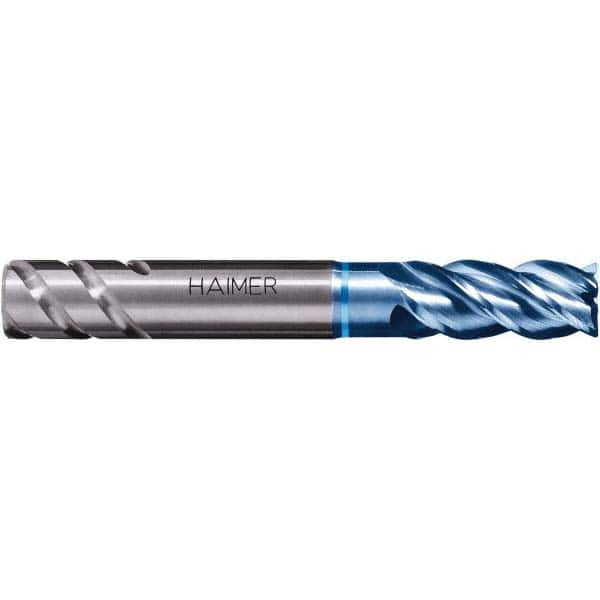

Corner Chamfer End Mill: 0.5″ Dia, 1″ LOC, 4 Flute, Solid Carbide 3″ OAL, 1/2″ Shank Dia, AlTiN Coated, Centercutting
Item #: 52175361
Brand: HAIMER
Model #: F1004NNL1/2ZCAA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000; 0.5 in |
| Mill Diameter (Inch) | 1/2; 0.5 in |
| End Type | Corner Chamfer |
| Chamfer Length (Decimal Inch) | 0.0120 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1 |
| Shank Diameter (Inch) | 1/2; 1/2 in |
| Overall Length (Inch) | 3; 3 in |
| Overall Length (mm) | 3 in |
| Centercutting | Yes; Center Cutting |
| Extended Reach | Yes |
| Reach Length (Decimal Inch) | 1.25 in; 1.2500 |
| Reach Length (Inch) | 1.25 in; 1-1/4 |
| Neck Diameter (Decimal Inch) | 0.4760; 0.476 in |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | 1/2 in |
| Overall Length Tolerance (Decimal Inch) | +0.002 to -0.002 in; +0.002/-0.002 |
| Overall Length Tolerance (mm) | +0.002 to -0.002 in |
