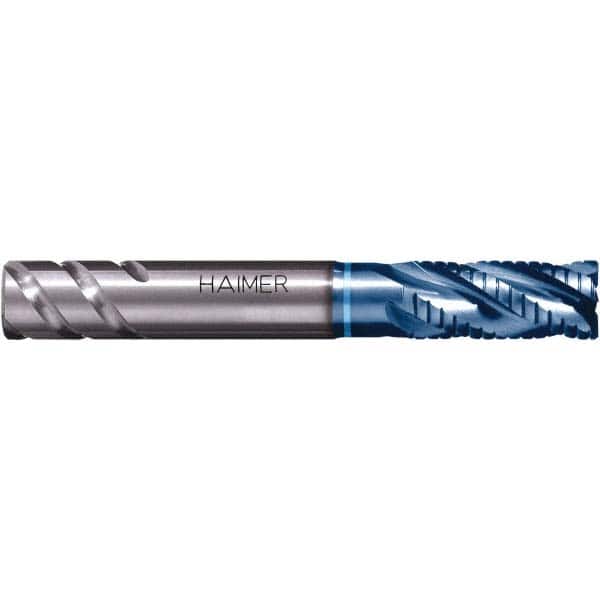

Corner Chamfer End Mill: 0.375″ Dia, 0.75″ LOC, 4 Flute, 0.012″ Chamfer Width, Solid Carbide 2-1/2″ OAL, 3/8″ Shank Dia, 35 ° Helix, AlTiN Coated, Centercutting
Item #: 52175270
Brand: HAIMER
Model #: F1304NNL3/8ZCAA
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (mm) | 0.375 in |
| Mill Diameter (Decimal Inch) | 0.3750; 0.375 in |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/8; 3/8 in |
| Shank Diameter (mm) | 3/8 in |
| Shank Diameter (Decimal Inch) | 3/8 in |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Overall Length (mm) | 2.5 in |
| Overall Length (Inch) | 2-1/2; 2.5 in |
| Centercutting | Yes; Center Cutting |
| Helix Angle | 35.00 |
| Extended Reach | Yes |
| Chamfer Width (Decimal Inch) | 0.0120 in; 0.0120 |
| Chamfer Angle | 45 |
| Material Grade | Submicron |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Overall Length Tolerance (Decimal Inch) | +0.002 to -0.002 in; +0.002/-0.002 |
| TIR Maximum (Decimal Inch) | 0.0002 |
| Reach Length (Inch) | 1; 1 in |
| Reach Length (mm) | 1 in |
| Overall Length (Decimal Inch) | 2.5000; 2.5 in |
