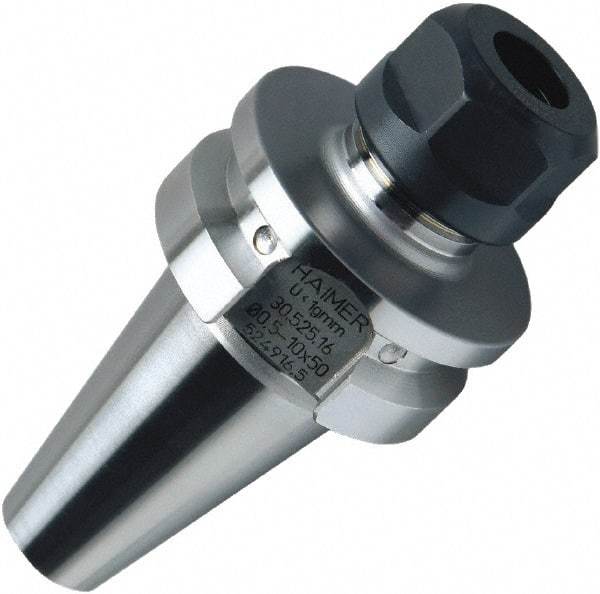

HAIMER - 0.06" to 0.78" Capacity, 2.36" Projection, BT30 Taper Shank, ER32 Collet Chuck - 0.0001" TIR
Item #: 52151206
Brand: HAIMER
Model #: 30.525.32
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Projection (Decimal Inch) | 2.3600 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.0600 |
| Maximum Collet Capacity (Decimal Inch) | 0.7800 |
| Type | ER Collet |
| Nose Diameter (Decimal Inch) | 1.9700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Collet Nut Diameter (Decimal Inch) | 1.2598 |
| Collet Nut Diameter (mm) | 32.00 |
