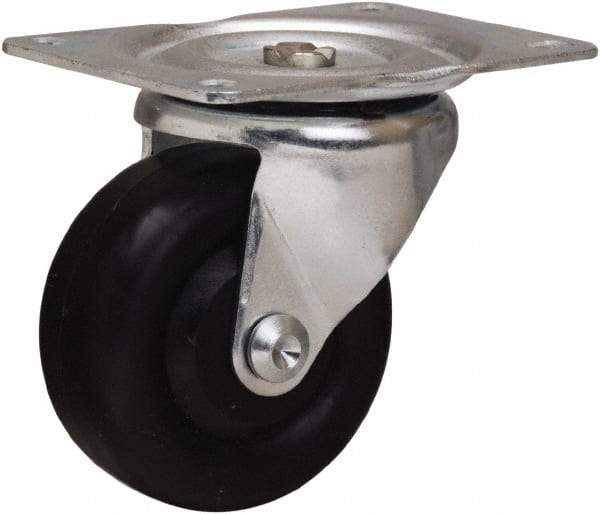

Hamilton - 3" Diam x 1-3/8" Wide x 3-3/4" OAH Top Plate Mount Swivel Caster - Polyolefin, 230 Lb Capacity, Plain Bore Bearing, 3-1/8 x 4-1/8" Plate
Item #: 52141249
Brand: Hamilton
Model #: S-223-A
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mount | Top Plate |
| Style | Swivel |
| Wheel Diameter (Inch) | 3 |
| Wheel Width (Inch) | 1-3/8 |
| Overall Height (Inch) | 3-3/4 |
| Load Capacity (Lb.) | 230 |
| Wheel Material Type | Polymer |
| Plate Size (Inch) | 3-1/8 x 4-1/8 |
| Bearing Type | Plain Bore |
| Finish/Coating | Bright Zinc Plated |
| Bolt Hole Spacing | 2-3/8 x 3-1/8 to 3-1/2 |
| Attaching Bolt Size (Inch) | 5/16 |
| Attaching Bolt Size (Decimal Inch) | 0.3125 |
| Applications | Dollies; Food Service; High Temp. (200 F); Laundry Trucks; Lt. Duty |
| Additional Information | Abrasion Resistant; Chemical Resistant; Fair Floor Protection; Impact Resistant; Moisture Resistant; Rolling Ease |
| Wheel Material | Polyolefin |
