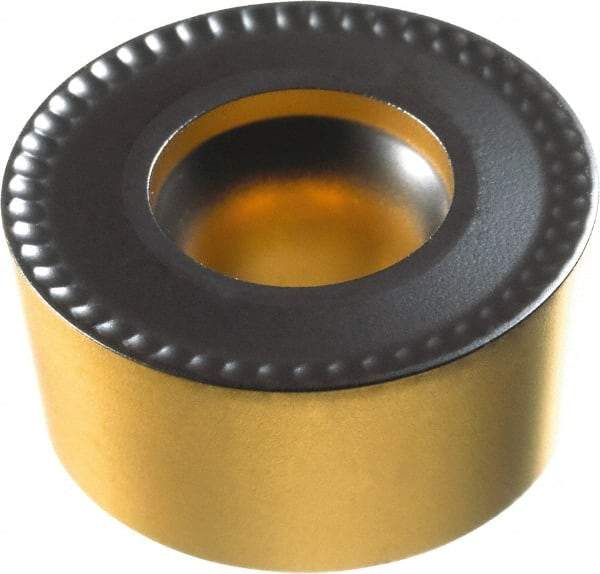

Sandvik Coromant - RCMT2006M0 Grade 4325 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, Round, 20mm Inscr Circle, 1/4" Thick
Item #: 52087053
Brand: Sandvik Coromant
Model #: 6532162
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 2006M0 |
| Material | Carbide |
| Length (mm) | 6.35 |
| Length (Inch) | 1/4 |
| Length (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/AI2O3/TiN |
| Insert Length (Decimal Inch) | 0.2500 |
| OverallLength (mm) | 6.35 |
| Overall Length (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | RCMT 20 06 M0 4325 |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
