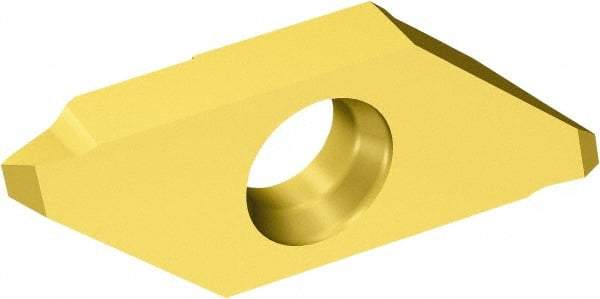

Sandvik Coromant - MATL-C3 Grade 1025, External 60° V Threading Insert - 0.35 to 10mm & 24 to 72 TPI Ext Pitch, Left Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 52085412
Brand: Sandvik Coromant
Model #: 5735476
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MATL-C |
| Insert Size | 3 |
| Thread Type | External |
| Cutting Direction | Neutral |
| Insert Hand | Left Hand |
| Thread Standard | 60 Degrees V |
| Manufacturer's Grade | 1025 |
| External Pitch/TPI | 0.35-1.00 mm; 24-72 TPI |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | MATL 3 60-C 1025 |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Series | CoroCut XS |
| Included Angle of Threading Tip | 60 |
| Maximum Tip to Top of Insert (Decimal Inch) | 0.1250 |
| Tip to Top of Insert (mm) | 3.18 |
| Tip to Top of Insert (Decimal Inch) | 0.1250 |
| Blade Height (mm) | 3.18 |
| Blade Height (Decimal Inch) | 0.1250 |
| Length (Decimal Inch) | 0.0472 |
| Manufacturers Catalog Number | MATL 3 60-C 1025 |
| Maximum Depth of Cut (mm) | 0.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.0295 |
