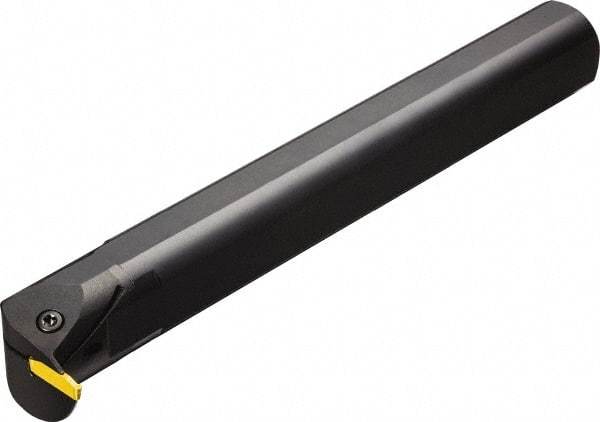

Sandvik Coromant - Internal, Internal, Right Hand, 9mm Max Depth of Cut, 3 to 4mm Groove Width, Indexable Grooving Tool Holder - N123G2-GM Insert Compatibility, 29.972mm Shank Height, 1-1/4" Shank Width, 250mm OAL, Through Coolant
Item #: 52084910
Brand: Sandvik Coromant
Model #: 5739646
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut | 0.3543 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 9.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | Internal |
| Insert Compatibility | N123G2-GM |
| Shank Height (mm) | 29.97 |
| Shank Height (Decimal Inch) | 1.1800 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | CoroCut 1-2 |
| Through Coolant | Through Coolant |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Grooving |
| Insert Holding Method | Clamp |
| Insert Seat Size | G |
| Number of Inserts Used on Toolholder | 1 |
| Minimum Hole Diameter (mm) | 31.75 |
| Minimum Hole Diameter (Decimal Inch) | 1.2500 |
| Maximum Hole Depth (Decimal Inch) | 127.0000 |
| Maximum Bore Depth (Decimal Inch) | 5.0000 |
| igrvh Maximum Bore Depth (mm) | 127.00 |
| Maximum Workpiece Diameter (mm) | 31.75 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2500 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Head Length (mm) | 45.00 |
| Head Length (Decimal Inch) | 1.7717 |
| Mount Type | Straight Mount |
| Full Radius Insert | Yes |
| Shank Length (mm) | 250.00 |
| Shank Length (Decimal Inch) | 9.8425 |
| Manufacturers Catalog Number | RAG123G037-20B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123G2-GM |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Minimum BoreDiameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
