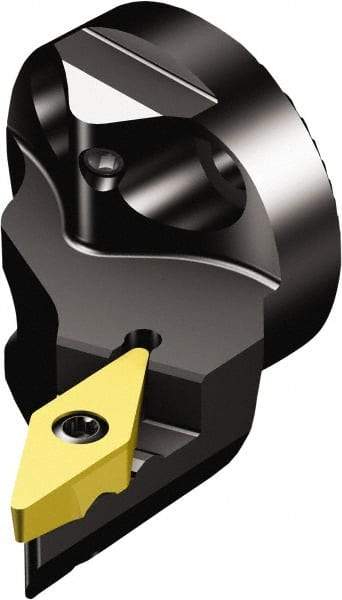

Sandvik Coromant - Right Hand Cut, Size 32, TR-VB1308 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 42mm Head Length, Through Coolant, Series CoroTurn TR
Item #: 52083946
Brand: Sandvik Coromant
Model #: 5755368
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 32 |
| Series Name | CoroTurn TR |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 42.00 |
| Head Length/Projection (Decimal Inch) | 1.6535 |
| Insert Style | TR-VB1308 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Complete Insert Compatibility | TR-VB1308 |
| Head Connection Size | 40 |
