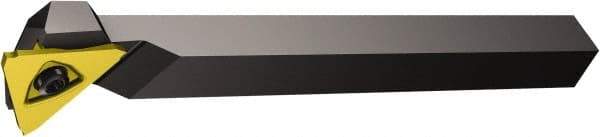

Sandvik Coromant - External Thread, 1/4" Max Depth of Cut, 0.5mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, N123T3-0150-CM Insert Style, RF123T/U..BM Toolholder Style, Series CoroCut 3
Item #: 52080413
Brand: Sandvik Coromant
Model #: 5740905
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (mm) | 3.40 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 127.00 |
| Series | CoroCut 3 |
| Toolholder Style | RF123T/U..BM |
| Insert Compatibility | N123T3-0150-CM |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (mm) | 25.40 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 4.0940 |
| Shank Length (mm) | 103.99 |
| Manufacturers Catalog Number | RF123T023-16BM |
