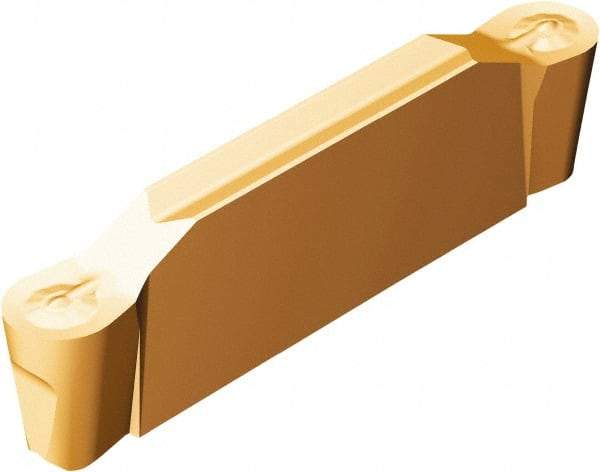

Sandvik Coromant - E2N123x2 RO 2.39mm Cutting Width Carbide Grooving Insert - 19mm Max Depth of Cut, Neutral, 1.2mm Corner Radius, TiAlN Finish
Item #: 52080264
Brand: Sandvik Coromant
Model #: 5736476
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x2 |
| Insert Size | E2 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Insert Seat Size | E |
| Chipbreaker | RO |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7890 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123E2-0239-RO 1125 |
| Manufacturers Catalog Number | N123E2-0239-RO 1125 |
| Overall Width (Decimal Inch) | 0.0940 |
| Insert Thickness (Decimal Inch) | 0.1693 |
