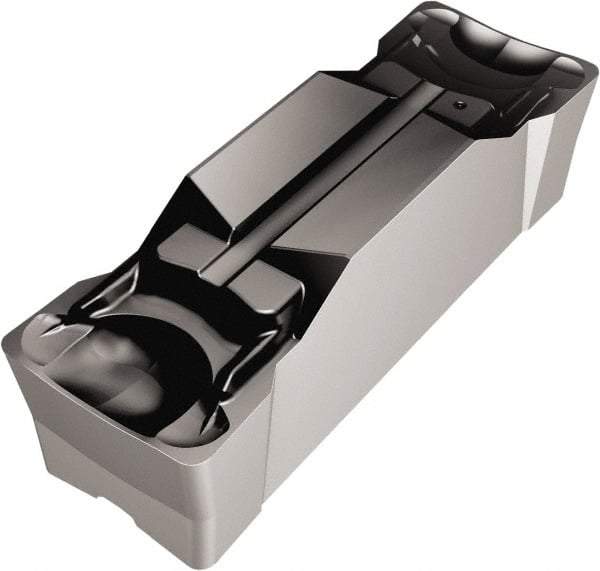

Sandvik Coromant - KN123 GM Grade 3115, 6mm Cutting Width Carbide Grooving Insert - 22.7mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiCN/Al2O3 Finish
Item #: 52079662
Brand: Sandvik Coromant
Model #: 5736704
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | K |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 22.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.8937 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Relief Angle | 7 |
| Insert Seat Size | K |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0118 |
| Maximum Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | MT-CVD |
| Overall Length (mm) | 24.43 |
| Overall Length (Decimal Inch) | 0.9618 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123K2-0600-0004-GM 3115 |
| Manufacturers Catalog Number | N123K2-0600-0004-GM 3115 |
| Overall Width (mm) | 6.00 |
| Overall Width (Decimal Inch) | 0.2362 |
| Insert Thickness (Decimal Inch) | 0.1713 |
