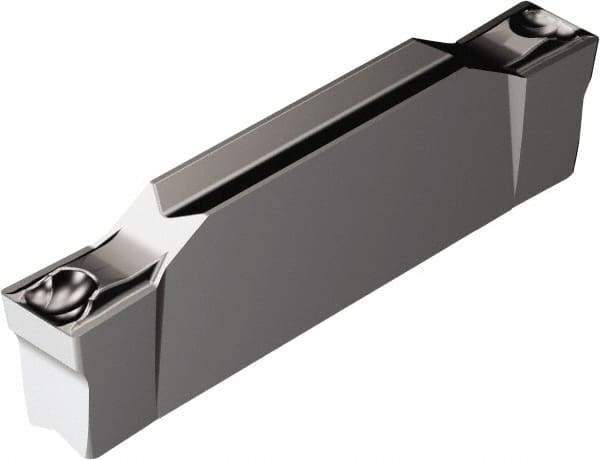

Sandvik Coromant - FN123 GF Grade 1105, 2.39mm Cutting Width Carbide Grooving Insert - 19.2mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiAlN2 Finish
Item #: 52079316
Brand: Sandvik Coromant
Model #: 6075358
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | F |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (mm) | 19.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.7559 |
| Manufacturer's Grade | 1105 |
| Coating | TiAlN2 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Relief Angle | 7 |
| Insert Seat Size | F |
| Chipbreaker | GF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0138 |
| Maximum Corner Radius (Decimal Inch) | 0.0177 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 20.05 |
| Overall Length (Decimal Inch) | 0.7894 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123F2-0239-0004-GF 1105 |
| Manufacturers Catalog Number | N123F2-0239-0004-GF 1105 |
| Overall Width (mm) | 2.39 |
| Overall Width (Decimal Inch) | 0.0941 |
| Insert Thickness (Decimal Inch) | 0.1693 |
