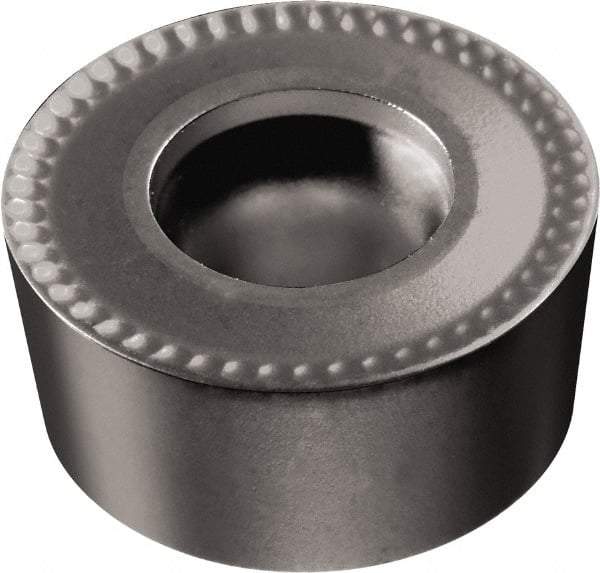

Sandvik Coromant - RCMT10T3M0 Grade H13A Carbide Turning Insert - Uncoated, Round, 10mm Inscr Circle, 5/32" Thick
Item #: 52073087
Brand: Sandvik Coromant
Model #: 5740731
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Length (mm) | 3.97 |
| Length (Inch) | 5/32 |
| Length (Decimal Inch) | 0.1563 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Insert Length (Decimal Inch) | 0.1563 |
| OverallLength (mm) | 3.97 |
| Overall Length (Decimal Inch) | 0.1563 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | RCMT 10 T3 M0 H13A |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
