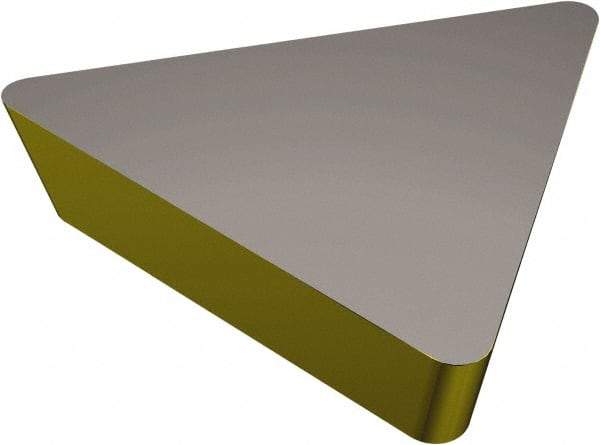

Sandvik Coromant - TPUN222 Grade 3215 Carbide Turning Insert - Al2O3/TiCN Finish, Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 52072741
Brand: Sandvik Coromant
Model #: 5755306
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPUN |
| Insert Size | 222 |
| Material | Carbide |
| Length (mm) | 10.20 |
| Length (Decimal Inch) | 0.4015 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 3215 |
| Coating | Al2O3/TiCN |
| Insert Length (Decimal Inch) | 0.4015 |
| OverallLength (mm) | 11.00 |
| Overall Length (Decimal Inch) | 0.4330 |
| ISO Number | TPUN 11 03 08 3215 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
