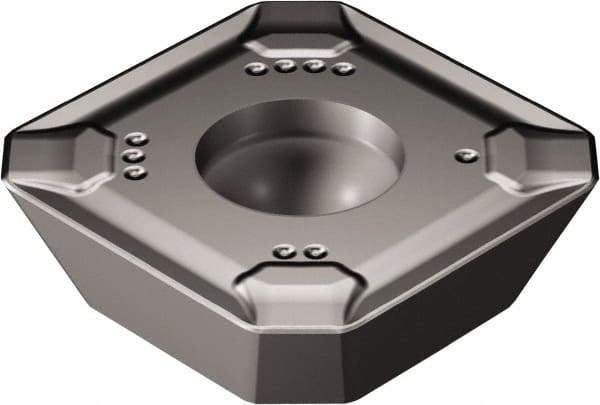

Sandvik Coromant - R24518T6 PM Grade 1010 Carbide Milling Insert - TiAlN2 Finish, 6.1mm Thick, 18mm Inscribed Circle, 1mm Corner Radius
Item #: 52070638
Brand: Sandvik Coromant
Model #: 5744011
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R245 |
| Insert Size | 18T6 |
| Material | Carbide |
| Manufacturer's Grade | 1010 |
| Coating | TiAlN2 |
| Length (mm) | 13.90 |
| Inscribed Circle (mm) | 18.00 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Thickness (mm) | 6.10 |
| Thickness (Decimal Inch) | 0.2402 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 5.70 |
| Hole Diameter (Decimal Inch) | 0.2244 |
| Rake Angle | 10 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 9.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.3839 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-18 T6 M-PM 1010 |
