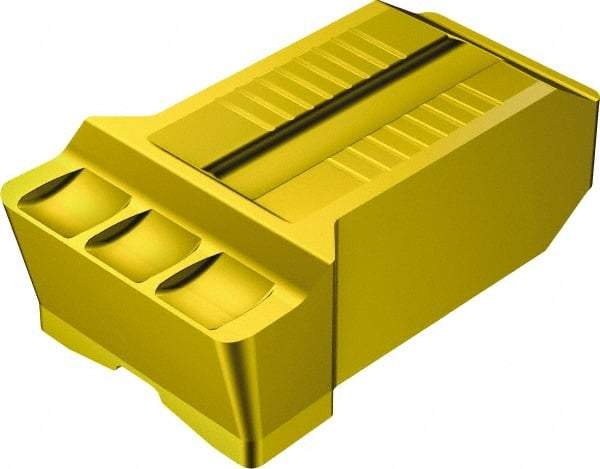

Sandvik Coromant - RN123 GR Grade 2135, 15mm Cutting Width Carbide Grooving Insert - Neutral, 1.2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 52068376
Brand: Sandvik Coromant
Model #: 5736563
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | R |
| Material | Carbide |
| Cutting Width (mm) | 15.00 |
| Cutting Width (Decimal Inch) | 0.5906 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 7.49 |
| Cutting Height (Decimal Inch) | 0.2949 |
| Relief Angle | 13 |
| Insert Seat Size | R |
| Chipbreaker | GR |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0433 |
| Maximum Corner Radius (Decimal Inch) | 0.0512 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Coating Process | MT-CVD |
| Overall Length (mm) | 25.40 |
| Overall Length (Inch) | 1 |
| Overall Length (Decimal Inch) | 1.0000 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | N123R1-1500-0010-GR 2135 |
| Manufacturers Catalog Number | N123R1-1500-0010-GR 2135 |
| Overall Width (mm) | 15.00 |
| Overall Width (Decimal Inch) | 0.5906 |
| Insert Thickness (Decimal Inch) | 0.2949 |
