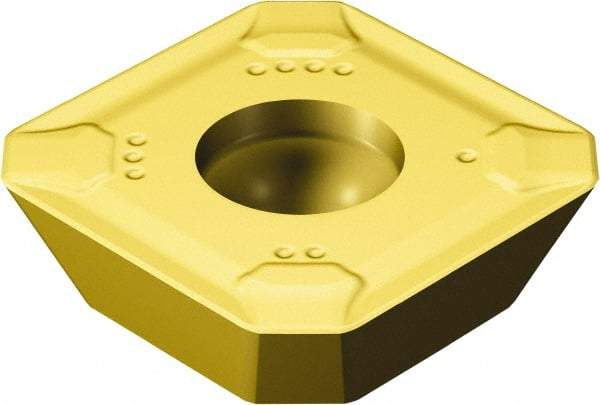

Sandvik Coromant - R24518T6 KM Grade K20W Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.1mm Thick, 18mm Inscribed Circle, 1mm Corner Radius
Item #: 52066438
Brand: Sandvik Coromant
Model #: 5743948
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R245 |
| Insert Size | 18T6 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 13.90 |
| Inscribed Circle (mm) | 18.00 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Thickness (mm) | 6.10 |
| Thickness (Decimal Inch) | 0.2402 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 5.70 |
| Hole Diameter (Decimal Inch) | 0.2244 |
| Rake Angle | 10 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 9.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.3839 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-18 T6 M-KM K20W |
