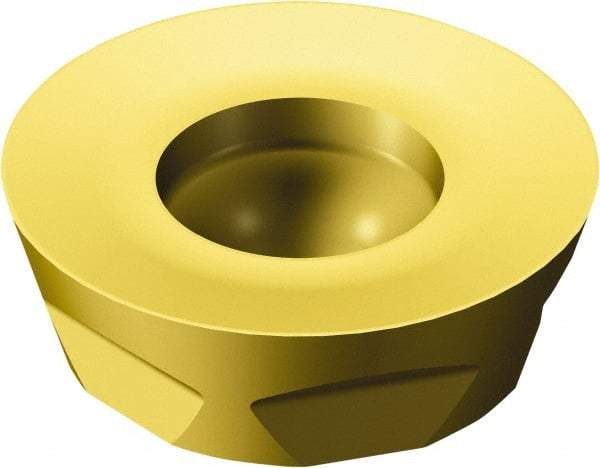

Sandvik Coromant - R3002570 PL Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 7.94mm Thick, 1" Inscribed Circle, 1/2" Corner Radius
Item #: 52065984
Brand: Sandvik Coromant
Model #: 5853461
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 2570 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (mm) | 7.94 |
| Thickness (Decimal Inch) | 0.3126 |
| Corner Radius (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Corner Radius (mm) | 12.70 |
| Hole Diameter (mm) | 7.60 |
| Hole Diameter (Decimal Inch) | 0.2992 |
| Coating Process | CVD |
| Included Angle | 0 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 3.72 |
| Maximum Depth of Cut (Decimal Inch) | 0.1465 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R300-2570E-PL S40T |
