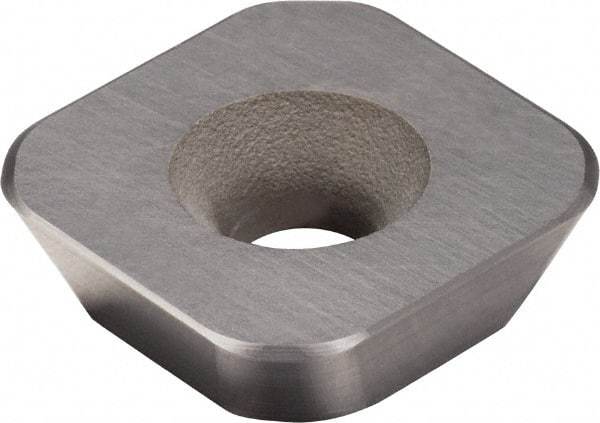

Sandvik Coromant - R24512T3 E1 Grade 6190 Ceramic Milling Insert - Uncoated, 5/32" Thick, 13.4mm Inscribed Circle, 2.5mm Corner Radius
Item #: 52065455
Brand: Sandvik Coromant
Model #: 5782737
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | R245 |
| Insert Size | 12T3 |
| Material | Ceramic |
| Manufacturer's Grade | 6190 |
| Coating | Uncoated |
| Length (mm) | 10.00 |
| Inscribed Circle (mm) | 13.40 |
| Inscribed Circle (Decimal Inch) | 0.5276 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 2.50 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Coating Process | Uncoated |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | E1 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R245-12 T3 E1 6190 |
