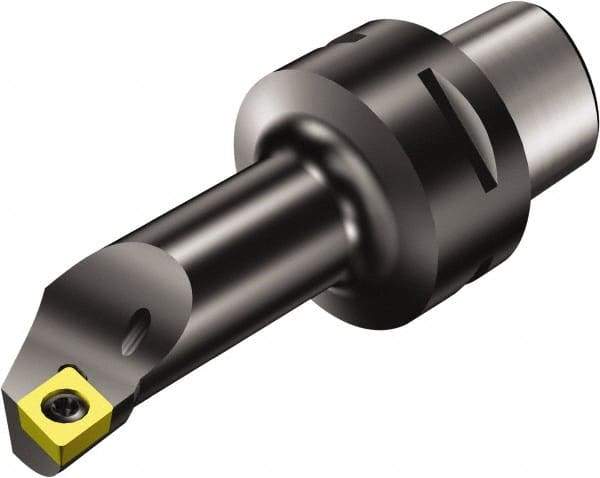

Sandvik Coromant - Left Hand Cut, Size C4, CCMT 09T308 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 11mm Ctr to Cutting Edge, 70mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 52060944
Brand: Sandvik Coromant
Model #: 5727878
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | CCMT 09T308 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw; Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 70.00 |
| Maximum Hole Depth (Decimal Inch) | 2.7559 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | -8.3967 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CCMT 09T308 |
| Head Connection Size | C5 |
