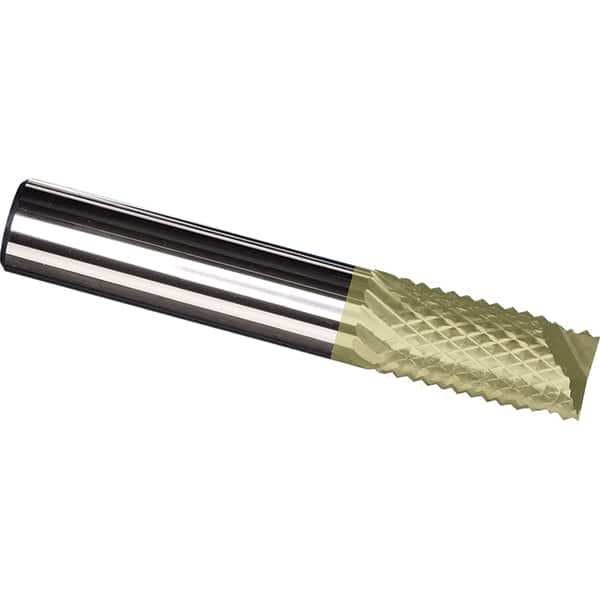

Made in USA - 2mm Diam, 10mm LOC, End Mill End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 38mm OAL, Use on Fiberglass
Item #: 51985125
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
End Mill router bits are used for bottom cutting and are designed to produce a smooth surface with a square corner
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Zirconium nitride (ZrN) is similar to TiN, but has a higher oxidation temperature. It is commonly used on nonferrous materials including aluminum, brass, copper and titanium.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 2.00 |
| Cutting Diameter (Decimal Inch) | 0.0787 |
| End Type | End Mill |
| Length of Cut (mm) | 10.00 |
| Length of Cut (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 3.00 |
| Overall Length (mm) | 38.00 |
| Material | Solid Carbide |
| Finish/Coating | ZrN |
| Material Application | Fiberglass |
| Cutting Direction | Right Hand |
