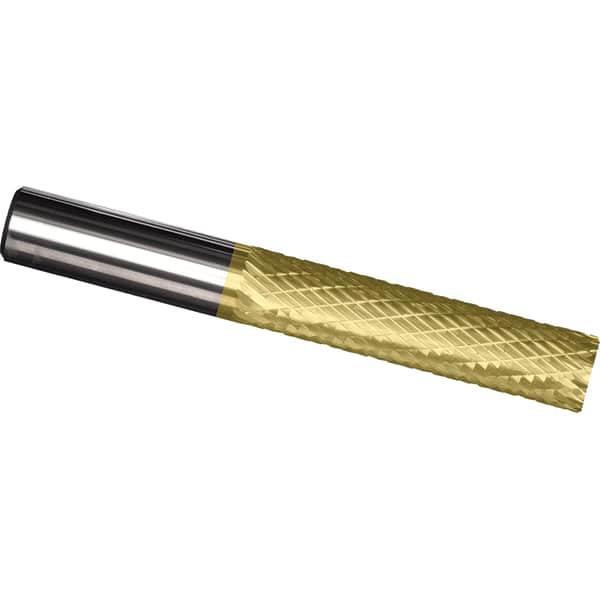

Made in USA - 1/8" Diam, 1/2" LOC, Plain End, Solid Carbide Diamond Pattern Router Bit - Right Hand Cut, 1-1/2" OAL, 1/8" Shank Diam, Use on Cast Iron, Stainless, Steel, Titanium
Item #: 51960961
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Plain (No End), also known as Safe End router bits, are used for edge routing and applications when no floor finish cuts are required.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.1250 |
| End Type | Plain (No End) |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Material | Solid Carbide |
| Finish/Coating | TiN |
| Material Application | Cast Iron; Stainless; Steel; Titanium |
| Cutting Direction | Right Hand |
