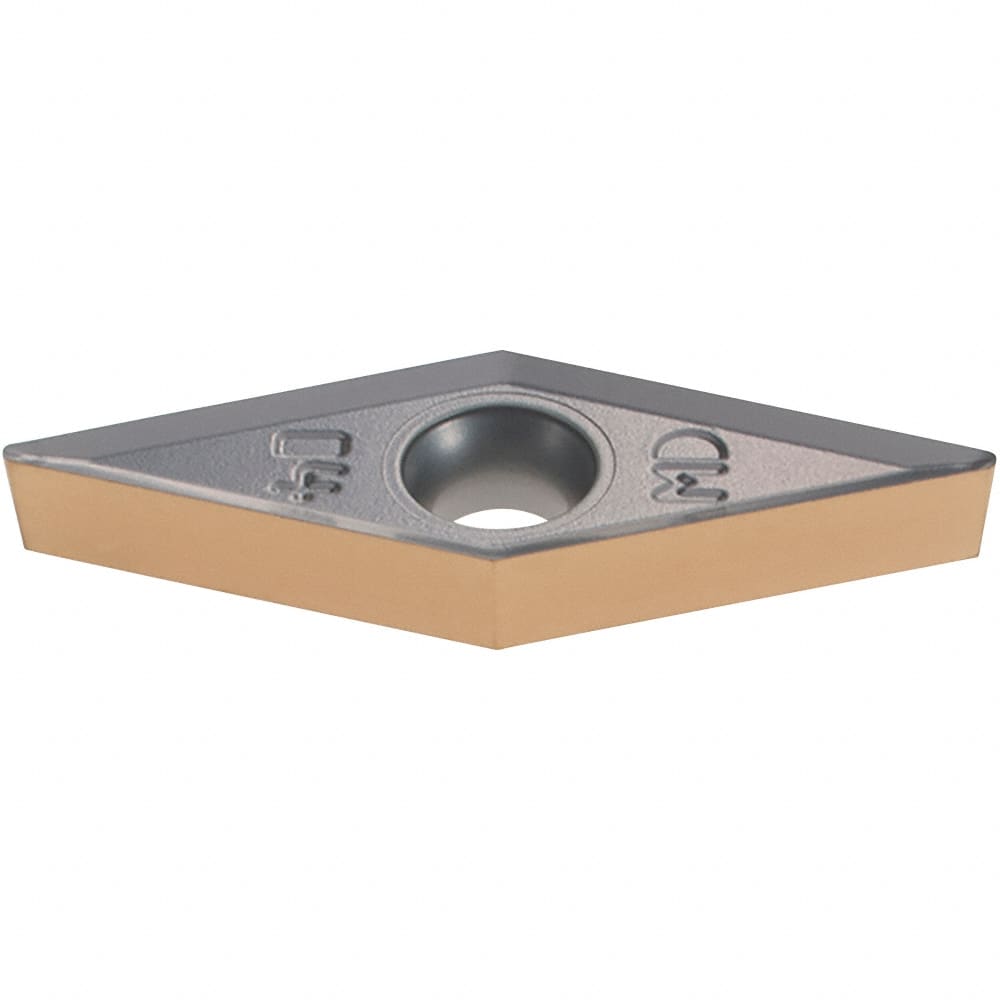

Iscar - VCGT130304 MD Grade IC807 Carbide Turning Insert - TiAlN Finish, 35° Diamond, 5/16" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 51900744
Brand: Iscar
Model #: 5591958
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 130304 |
| Material | Carbide |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | MD |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
