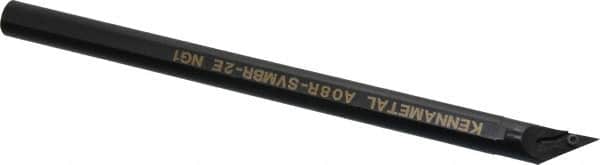

Kennametal - 24.89mm Min Bore Diam, 203.2mm OAL, 1/2" Shank Diam, A-SVMB Indexable Boring Bar - VB.. Insert, Screw Holding Method
Item #: 51865111
Brand: Kennametal
Model #: 1236002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVMB |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 24.89 |
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 203.20 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | VB.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.3120 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 10 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Complete Insert Compatibility | VB.. 221 |
| Toolholder Material | Steel |
