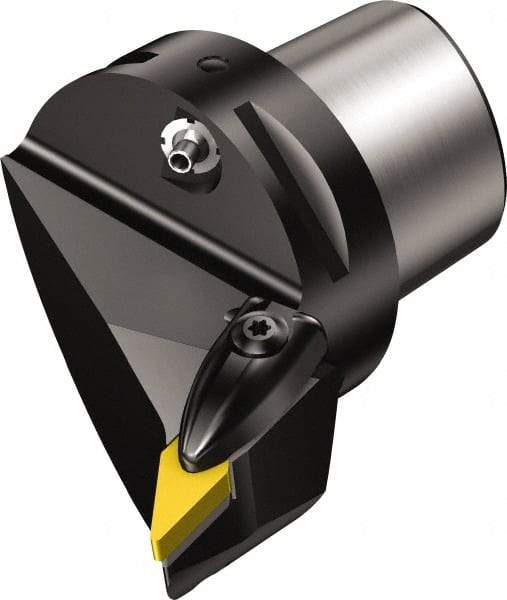

Sandvik Coromant - Right Hand Cut, Size C4, VBMT 160408 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 62mm Head Length, Through Coolant, Series T-Max P
Item #: 51589877
Brand: Sandvik Coromant
Model #: 5728298
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 62.00 |
| Head Length/Projection (Decimal Inch) | 2.4410 |
| Insert Style | VBMT 160408 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Wedge |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 62.00 |
| Maximum Hole Depth (Decimal Inch) | 2.4410 |
| Minimum Hole Diameter (mm) | 60.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Axial Rake Angle | -4 |
| Radial Rake Angle | -13 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | VNMG 160408 |
| Head Connection Size | C6 |
