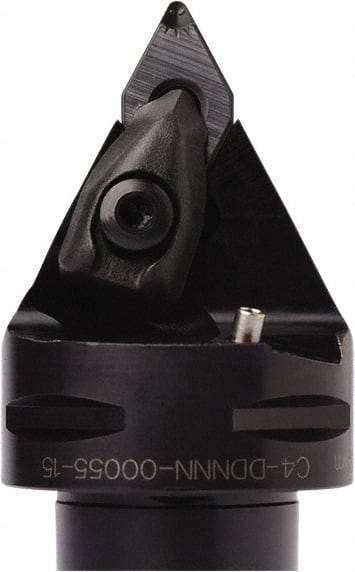

Seco - Neutral Cut, Size C4, DN.. 1506 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 0.5mm Ctr to Cutting Edge, 55mm Head Length, Series Seco-Capto
Item #: 51513166
Brand: Seco
Model #: 33826
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 55.00 |
| Head Length/Projection (Decimal Inch) | 2.1654 |
| Insert Style | DN.. 1506 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.50 |
| Center to Cutting Edge (Decimal Inch) | 0.0197 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -5 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | DN.. 1506.. |
