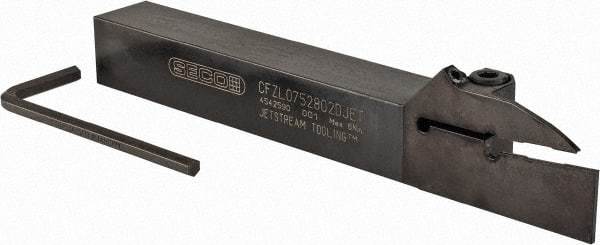

Seco - CFZL, Left Hand Cut, 3/4" Shank Height x 3/4" Shank Width, Indexable Turning Toolholder - 6" OAL, LC.. 2802.. Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 51482396
Brand: Seco
Model #: 65714
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CFZL |
| Series | Multi-Directional Turning (MDT) |
| Shank Width (Inch) | 3/4 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | LC.. 2802.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off, Grooving, Profiling, Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.9700 |
| Insert Width (Decimal Inch) | 0.0790 |
| Toolholder Material | Steel |
