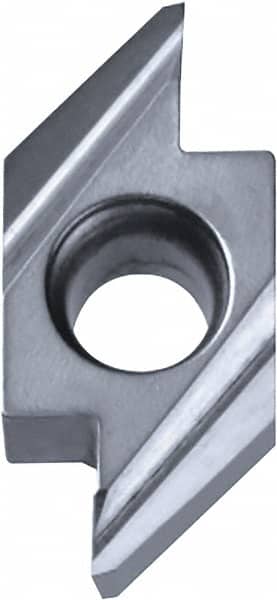

Kyocera - ABW15 Grade KW10 Carbide Turning Insert - Uncoated, Parallelogram, 5/32" Thick, 0.1524mm Corner Radius
Item #: 51266088
Brand: Kyocera
Model #: 8800078
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ABW |
| Insert Size | 15 |
| Material | Carbide |
| Length (mm) | 15.40 |
| Length (Decimal Inch) | 0.6063 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.1524 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| ISO Number | ABW15R4015 |
| Rake | Positive |
| Relief Angle | 15 |
| Manufacturers Catalog Number | ABW15R4015 KW10 |
| Primary Workpiece Material | N |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 4.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Insert Holding Method | Screw |
| Multi Use Application | Back Turning |
| MultiUseTool | No |
| Shape | Parallelogram |
