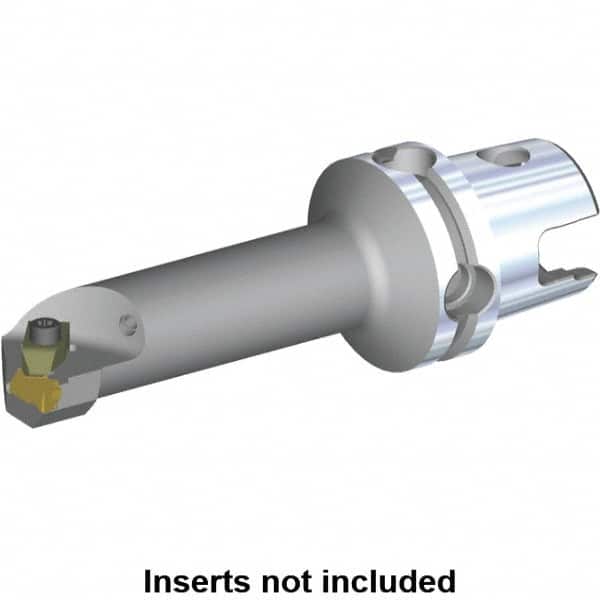

Kennametal - Insert Style NG 2R, 80mm Head Length, Left Hand Cut, Internal Modular Threading Cutting Unit Head - System Size KM40TS, 11mm Center to Cutting Edge, Series Top Notch
Item #: 51220168
Brand: Kennametal
Model #: 3955482
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40TS |
| Series Name | Top Notch |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Insert Style | NG 2R |
| Insert Holding Method | Clamp |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 16.00 |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Minimum Hole Diameter (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 56.00 |
| Maximum Hole Depth (Decimal Inch) | 2.2047 |
