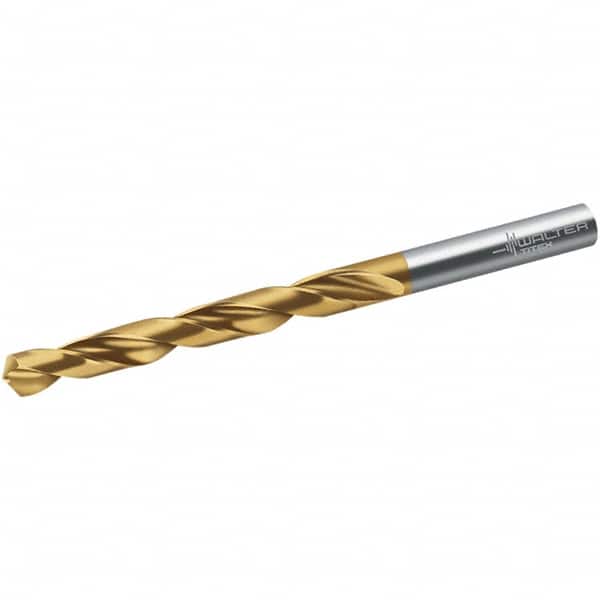

Walter-Titex - 15mm 118° High Speed Steel Jobber Drill - TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 169mm OAL, N Point
Item #: 51111003
Brand: Walter-Titex
Model #: 5058909
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 15.00 |
| Drill Bit Size (Decimal Inch) | 0.5906 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 114.00 |
| Flute Length (Decimal Inch) | 4.4882 |
| Overall Length (mm) | 169.00 |
| Overall Length (Decimal Inch) | 6.6535 |
| Flute Length x Diameter Ratio | 8xD |
| Point Type | N |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Maximum Drilling Depth (Decimal Inch) | 3.8976 |
| Maximum Drilling Depth (mm) | 99.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 55.00 |
| Shank Length (Decimal Inch) | 2.1654 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Material Grade | M2 |
| Series/List | A1211TIN |
