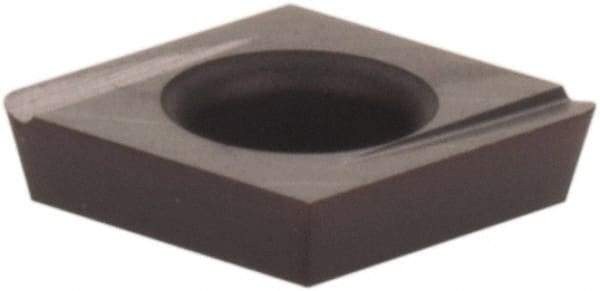

Kennametal - CDHH1.20.61 Grade KCU25 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 5/32" Inscr Circle, 0.04 Thick, 1/64" Corner Radius
Item #: 51103463
Brand: Kennametal
Model #: 4050613
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CDHH |
| Insert Size | 1.20.61 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1562 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.0400 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Manufacturer's Grade | KCU25 |
| Coating | AlTiN |
| Relief Angle | 15 |
| Coating Process | PVD |
| Primary Workpiece Material | P; M |
| Secondary Workpiece Material | S; K; N |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Shape | Diamond |
