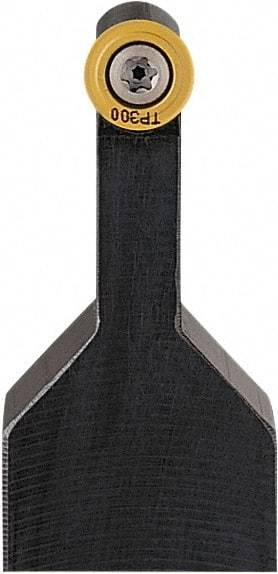

Seco - SRDC, Neutral Cut, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, RCMT 0602 Insert Compatibility, Series Screw Lock
Item #: 51014223
Brand: Seco
Model #: 11839
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw Lock |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | RCMT 0602 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 15.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6102 |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Insert Inscribed Circle (Decimal Inch) | 0.2362 |
| Toolholder Material | Steel |
