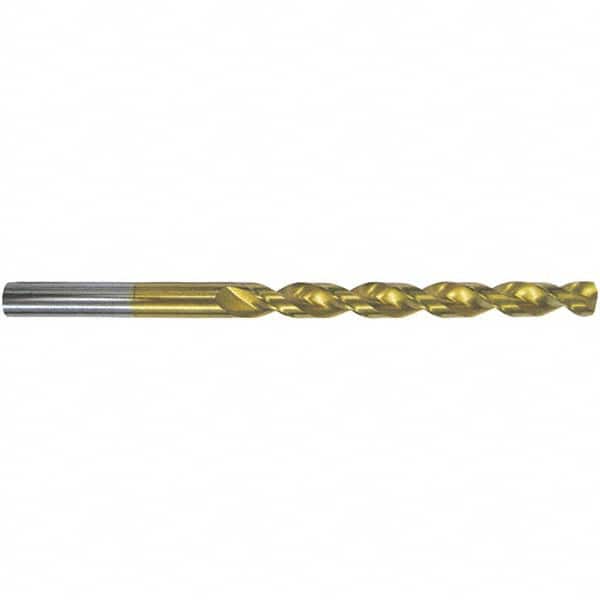

Taper Length Drill Bit: 0.0890″ Dia, 130 ° TiN Finish, 2.3228″ Flute Length, 3.5433″ OAL, RH Cut, Parabolic Flute, Straight Shank, Series 668
Item #: 51000529
Brand: Guhring
Model #: 9006680022600
Product Specifications
| Drill Bit Size (Wire) | #43 |
| Tool Material | High Speed Steel |
| Coating/Finish | TiN |
| Flute Length (mm) | 59.00 |
| Shank Type | Straight |
| Point Type | Standard |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Shank Diameter (mm) | 2.26 |
| Drill Bit Size (Decimal Inch) | 0.0890 |
| Flute Length (Decimal Inch) | 2.3228 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 668 |
| Shank Diameter (Decimal Inch) | 0.0890 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.3228 |
| Maximum Drilling Depth (mm) | 59.00 |
| Shank Length (Decimal Inch) | 1.2205 |
| Shank Length (mm) | 31.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 340 |
| Material Grade | M-2 |
