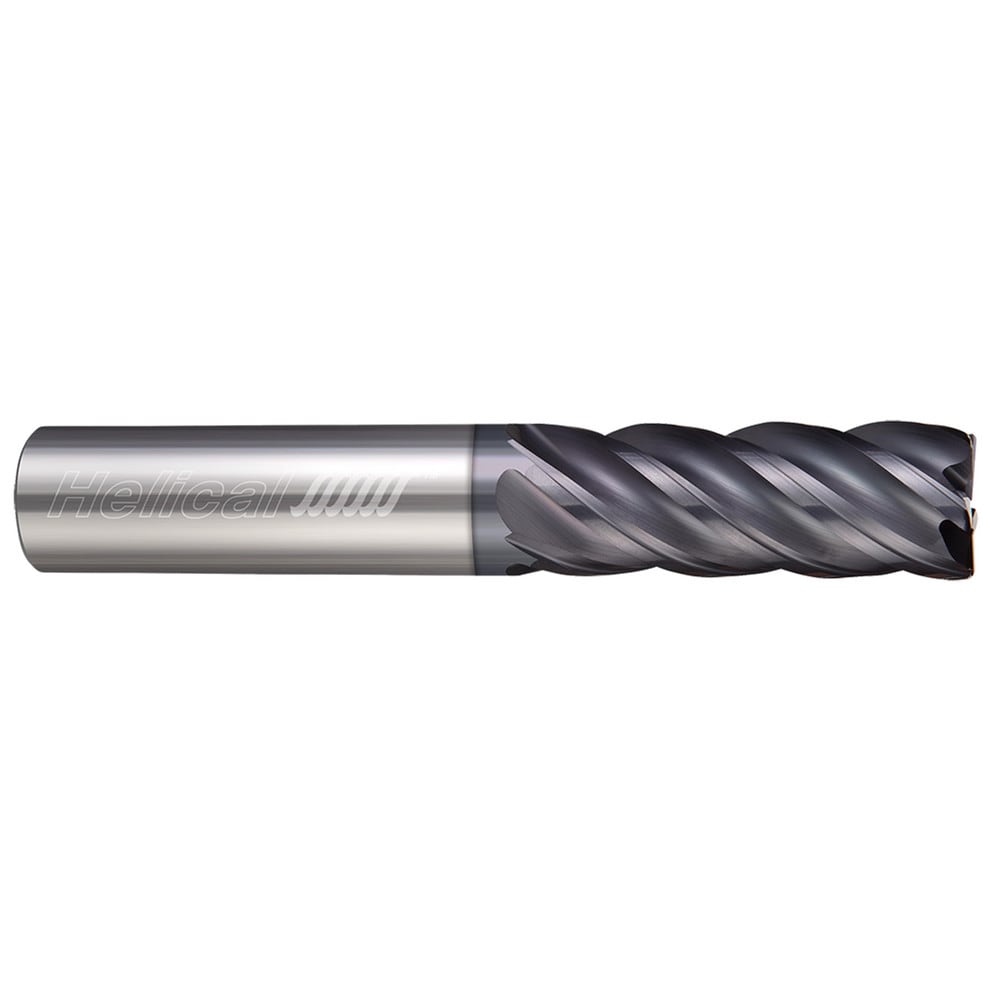

Brand: Helical Solutions / Part #: 34332W
Item #: 98617830
Brand: Helical Solutions
Model #: 34332W
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Coating/Finish | Aplus |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Length of Cut (Inch) | 1-5/8 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Series | End Mills for Steels - 5 Flute - Corner Radius - Variable Pitch |
