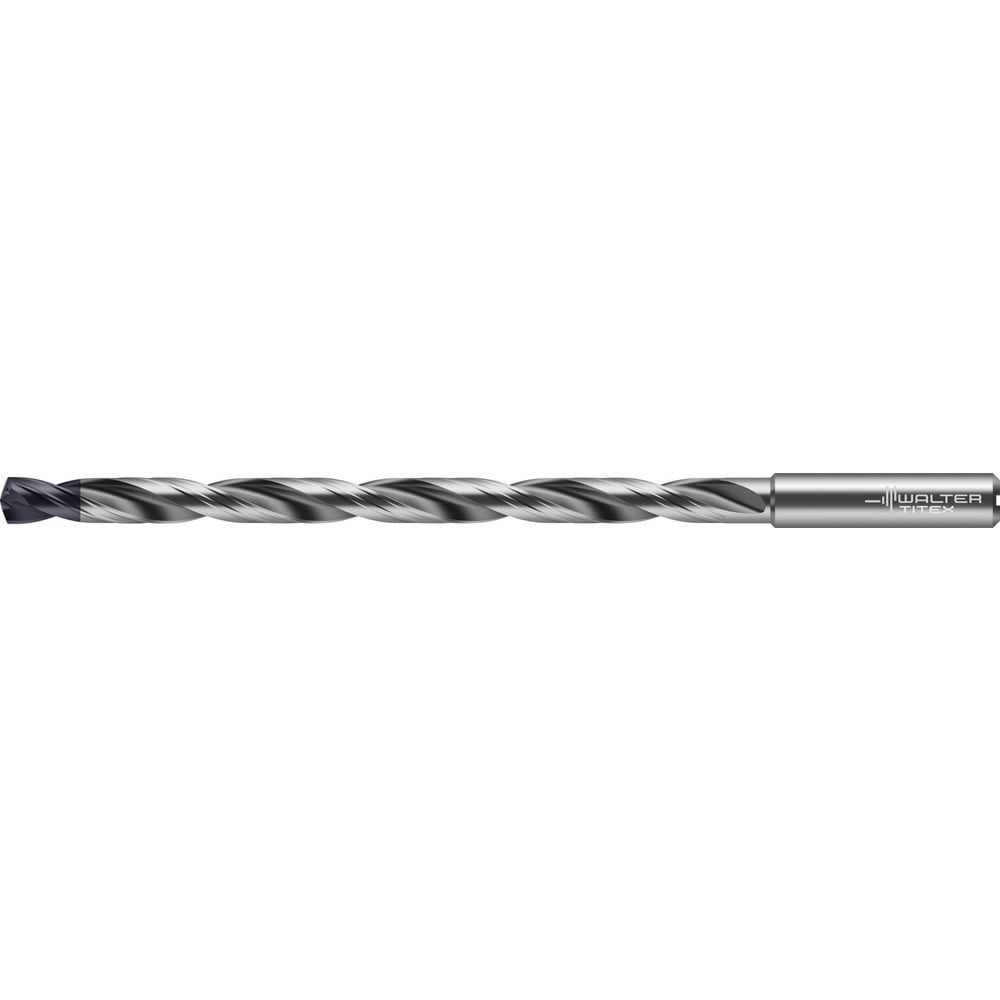

Extra Length Drill Bit: 0.3780", 140 °, Carbide
Item #: 82369125
Brand: Walter-Titex
Model #: 8325337
Product Specifications
| Drill Bit Size (mm) | 9.60 |
| Overall Length (mm) | 180.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiSiAlCrN/AlTiN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 138.00 |
| Point Type | Standard |
| Series | DC180 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3780 |
| Drill Point Length (mm) | 1.75 |
| Drill Point Length (Decimal Inch) | 0.0688 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.0000 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.000 |
| Flute Length (Decimal Inch) | 5.4331 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 4.8425 |
| Maximum Drilling Depth (mm) | 123.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
