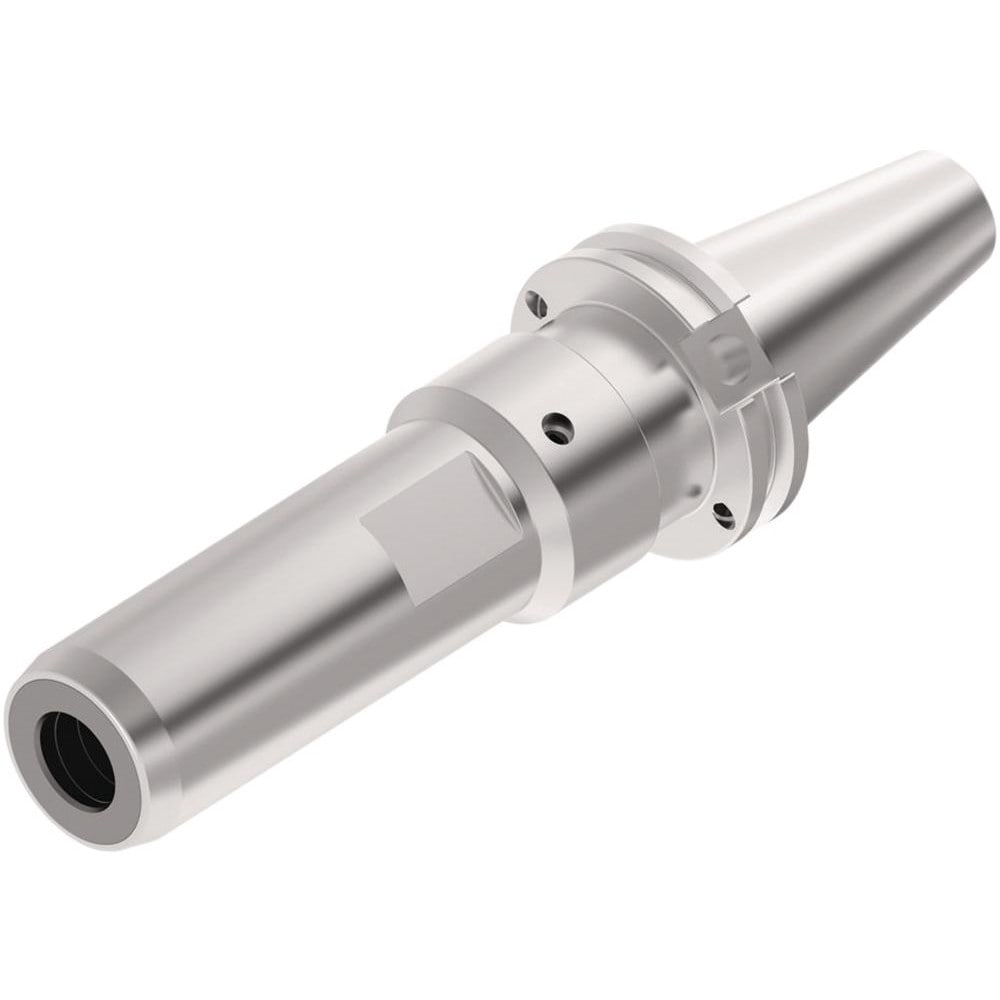

Hydraulic Tool Chuck: CV40 Taper Shank, 20.00 mm Hole
Item #: 84757699
Brand: Kennametal
Model #: 7138023
Product Specifications
| Shank Type | Straight-Cylindrical |
| Taper Size | CV40 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.0000 |
| Nose Diameter | 1-5/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 41.54 |
| Projection (mm) | 170.00 |
| Projection | 6-11/16 |
| Clamping Depth (mm) | 51.00 |
| Clamping Depth (Decimal Inch) | 2.0079 |
| Balanced To Rpm | 30000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 9.3799 |
| Overall Length (mm) | 238.2500 |
| Series | KSEM |
| Material | Alloy Steel |
| Hole Diameter (Mm) ( - 0 Decimals) | 20.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.6354 |
| Projection (Decimal Inch) | 6.6929 |
| UNSPSC Code | 27112800 |
| Country of Origin | Slovenia |
