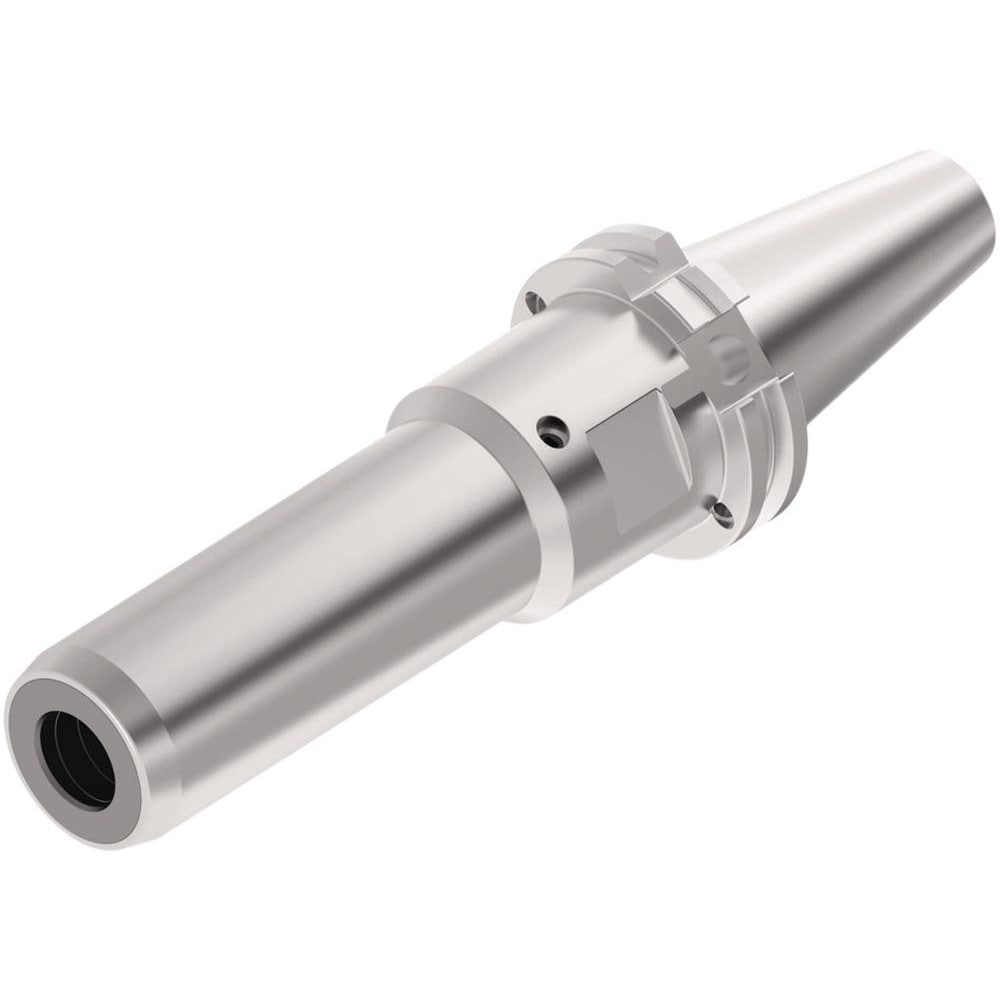

Hydraulic Tool Chuck: DV40 Taper Shank, 32.00 mm Hole
Item #: 84757525
Brand: Kennametal
Model #: 7138021
Product Specifications
| Shank Type | Straight-Cylindrical |
| Taper Size | DV40 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.0000 |
| Nose Diameter | 2-11/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 59.90 |
| Projection (mm) | 130.00 |
| Projection | 5-1/8 |
| Clamping Depth (mm) | 61.00 |
| Clamping Depth (Decimal Inch) | 2.4016 |
| Balanced To Rpm | 30000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.8051 |
| Overall Length (mm) | 198.2500 |
| Series | KSEM |
| Material | Alloy Steel |
| Hole Diameter (Mm) ( - 0 Decimals) | 32.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.3583 |
| Projection (Decimal Inch) | 5.1181 |
| UNSPSC Code | 27112800 |
| Country of Origin | Slovenia |
