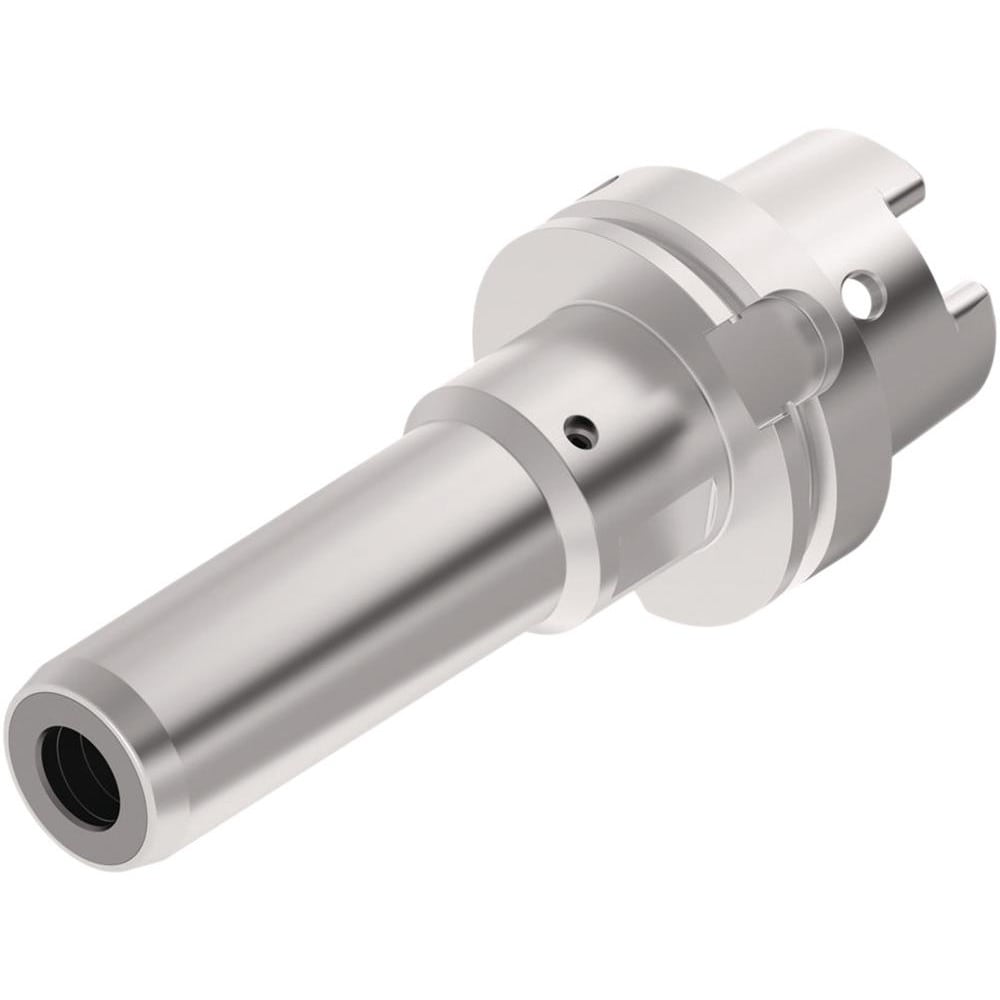

Hydraulic Tool Chuck: HSK80 Taper Shank, 25.00 mm Hole
Item #: 84757806
Brand: Kennametal
Model #: 7138029
Product Specifications
| Shank Type | Straight-Cylindrical |
| Taper Size | HSK80 |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.0000 |
| Nose Diameter | 1-31/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 49.90 |
| Projection (mm) | 150.00 |
| Projection | 5-29/32 |
| Clamping Depth (mm) | 57.00 |
| Clamping Depth (Decimal Inch) | 2.2441 |
| Balanced To Rpm | 30000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.4764 |
| Overall Length (mm) | 189.9000 |
| Series | KSEM |
| Material | Alloy Steel |
| Hole Diameter (Mm) ( - 0 Decimals) | 25.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.9646 |
| Projection (Decimal Inch) | 5.9055 |
| UNSPSC Code | 27112800 |
| Country of Origin | Slovenia |
