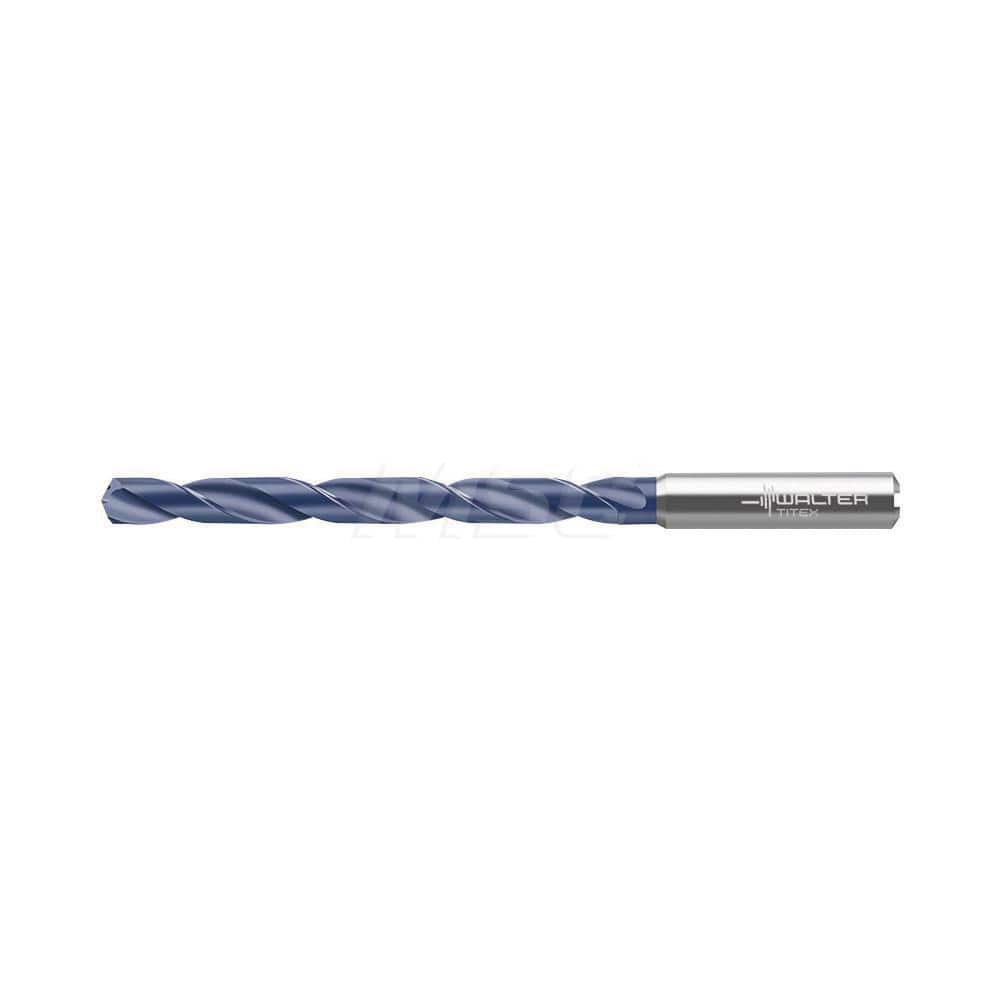

Jobber Length Drill Bit: 0.438″ Dia, 140 °, Solid Carbide TiNAl Finish, 6.417″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series DC150-08-05
Item #: 50665736
Brand: Walter-Titex
Model #: 6618715
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4380 |
| Drill Bit Size (Inch) | 7/16 |
| Drill Bit Size (mm) | 11.11 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Overall Length (mm) | 163.00 |
| Overall Length (Decimal Inch) | 6.4170 |
| Flute Length (mm) | 114.00 |
| Flute Length (Decimal Inch) | 4.4880 |
| Series | DC150-08-05 |
| Tool Application | Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 8xD |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 12.00 |
| Maximum Drilling Depth (Decimal Inch) | 3.7800 |
| Maximum Drilling Depth (mm) | 96.00 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7720 |
| Drill Point Length (mm) | 2.02 |
| Drill Point Length (Decimal Inch) | 0.0796 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
