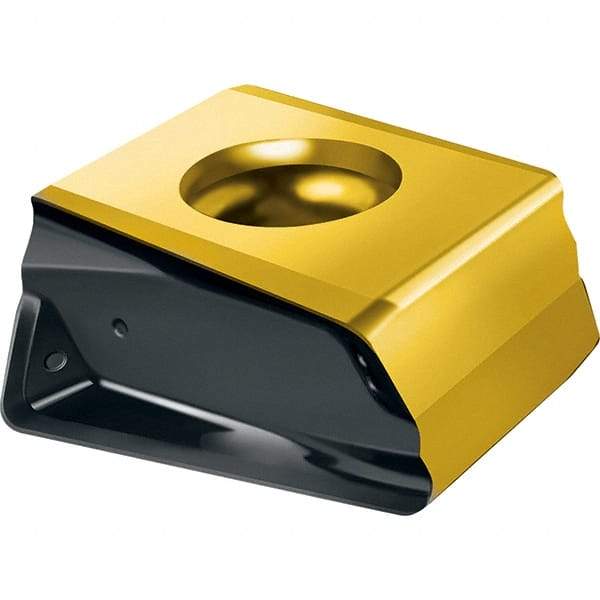

Walter - L55T Grade WXM15 Milling Insert - 6.8mm Thick, 0.8mm Corner Radius
Item #: 50619964
Brand: Walter
Model #: 6865029
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WXM15 |
| Width (mm) | 12.00 |
| Width (Decimal Inch) | 0.4720 |
| Length (mm) | 13.00 |
| Length (Decimal Inch) | 0.5120 |
| Inscribed Circle (mm) | 0.00 |
| Inscribed Circle (Decimal Inch) | 0.0000 |
| Thickness (mm) | 6.80 |
| Thickness (Decimal Inch) | 0.2680 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | L55T |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Manufacturers Catalog Number | LNHX130608R-L55T WXM15 |
