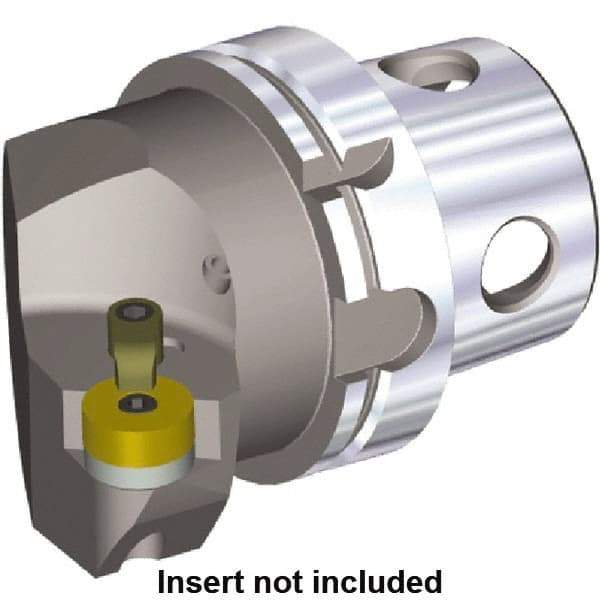

Kennametal - Insert Style RN..1906, RN..64, 100mm Head Length, Left Hand Cut, Internal/External Modular Threading Cutting Unit Head - System Size KM4X100, 63mm Center to Cutting Edge, Series KM4X
Item #: 50499409
Brand: Kennametal
Model #: 5337738
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM4X100 |
| Series Name | KM4X |
| Thread Type | Internal/External |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 63.00 |
| Head Length/Projection (mm) | 100.00 |
| Head Length/Projection (Decimal Inch) | 3.9370 |
| Insert Style | RN..1906; RN..64 |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 100.00 |
| Minimum Hole Diameter (mm) | 100.00 |
| Maximum Hole Depth (mm) | 120.00 |
| Axial Rake Angle | -5.000 |
| Radial Rake Angle | -5.000 |
