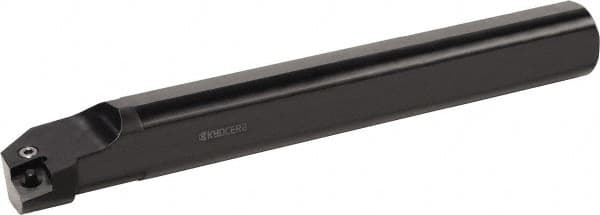

Kyocera - 2.02" Min Bore Diam, 12" OAL, 1-1/2" Shank Diam, A...PCLN Indexable Boring Bar - 2-1/2" Max Bore Depth, CNGA 43.., CNGG 43.., CNMA 43.., CNMG 43.., CNMM 43.., CNMP 43.. Insert, Pin Lock Assembly Holding Method
Item #: 50479864
Brand: Kyocera
Model #: 8802470
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A...PCLN |
| Minimum Bore Diameter (Decimal Inch) | 2.0200 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.5000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | CNGA 43..; CNGG 43..; CNMA 43..; CNMG 43..; CNMM 43..; CNMP 43.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -10 |
| Complete Insert Compatibility | 431HK; CNGA 4305S00525ME; CNGA 4305S00525SE; CNGA 431; CNGA 431S00245MEP; CNGA 431S00515MEW; CNGA 431S00525; CNGA 431S00525ME; CNGA 431S00525SE; CNGA 431S00730MET; CNGA 431S00730SET; CNGA 431S01630MEH; CNGA 431T00515; CNGA 431T00515ME; CNGA 431T00515SE; C |
| Toolholder Material | Steel |
