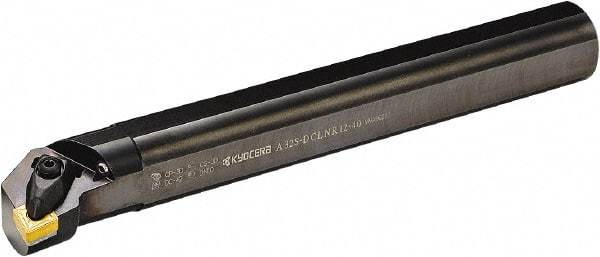

Kyocera - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-DCLN Indexable Boring Bar - 60mm Max Bore Depth, CN..G 1204.., CNGA 1204.., CNGG 1204.., CNMA 1204.., CNMG 1204.., CNMM 1204.. Insert, Screw Clamping Holding Method
Item #: 50479849
Brand: Kyocera
Model #: 8841769
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DCLN |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | CN..G 1204..; CNGA 1204..; CNGG 1204..; CNMA 1204..; CNMG 1204..; CNMM 1204.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Rake Angle | -11 |
| Coolant Hole Thread Size (Inch) | 1/8 |
| Complete Insert Compatibility | CN_G 1204..; CNGA 1204..; CNGG 1204..; CNMA 1204..; CNMG 1204..; CNMM 1204.. |
| Toolholder Material | Steel |
