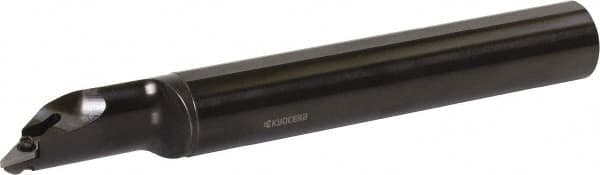

Kyocera - 31mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-SVPC(B)-A Indexable Boring Bar - 51mm Max Bore Depth, VBGT 33.., VBGW 33.., VBMT 33.., VBMW 33.., VCGT 33.., VCGW 33.., VCMT 33.., VCMW 33.. Insert, Screw Holding Method
Item #: 50479658
Brand: Kyocera
Model #: 8829164
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SVPC(B)-A |
| Series | Dynamic Bars |
| Minimum Bore Diameter (mm) | 31.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2205 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 51.00 |
| Maximum Bore Depth (Decimal Inch) | 2.0079 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | VBGT 33..; VBGW 33..; VBMT 33..; VBMW 33..; VCGT 33..; VCGW 33..; VCMT 33..; VCMW 33.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 27.50 |
| Center to Cutting Edge (mm) | 18.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7087 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -13 |
| Complete Insert Compatibility | VBGT 3305MR/L-Y; VBGT 3305R/L-Y; VBGT 331MR/L-Y; VBGT 331R/L-Y; VBGT 332MR/L-Y; VBGT 332R/L-Y; VBGW 3305S00435MET; VBGW 3305T00315ME; VBGW 3305T00315SE; VBGW 331S00435MET; VBGW 331S00435SET; VBGW 331S00525MES; VBGW 331T00315ME; VBGW 331T00315SE; VBGW 332S |
| Toolholder Material | Steel |
