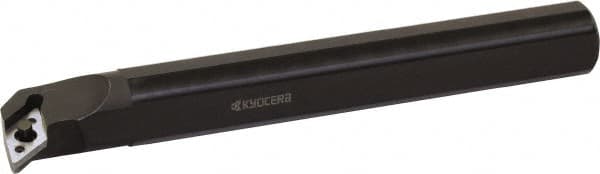

Kyocera - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, S-PDUN15 Indexable Boring Bar - DN.A 1504.., DN.G 1504.., DN.M 1504.. Insert, Pin Lock Assembly Holding Method
Item #: 50479534
Brand: Kyocera
Model #: 8837722
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PDUN15 |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | DN.A 1504..; DN.G 1504..; DN.M 1504.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -13 |
| Complete Insert Compatibility | DN.A 1504..; DN.G 1504..; DN.M 1504.. |
| Toolholder Material | Steel |
