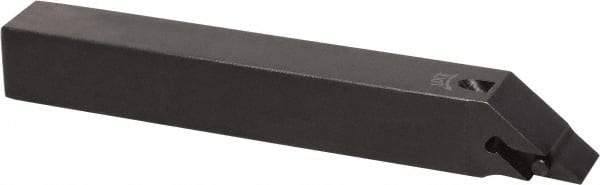

Kyocera - AVJB, Left Hand Cut, 93° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Neutral Rake Indexable Turning Toolholder - 120.65mm OAL, VB.. 22.., VC.. 22.. Insert Compatibility, Series AVJB
Item #: 50478999
Brand: Kyocera
Model #: 8835978
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | AVJB |
| Rake | Neutral |
| Rake Angle | 0 (Radial) |
| Series | AVJB |
| Lead Angle | 93 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 120.65 |
| Overall Length (Decimal Inch) | 4.7500 |
| Insert Compatibility | VB.. 22..; VC.. 22.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Copying; External Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
